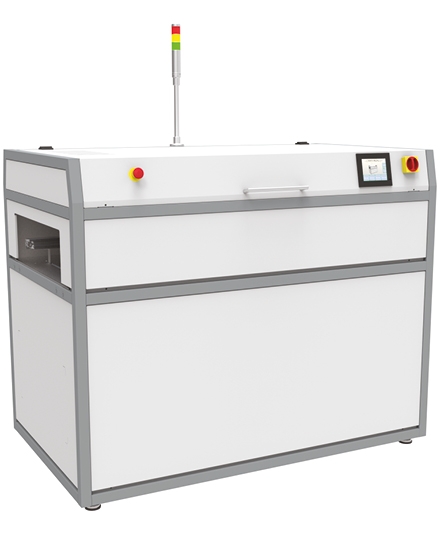

UV Curing Tunnel

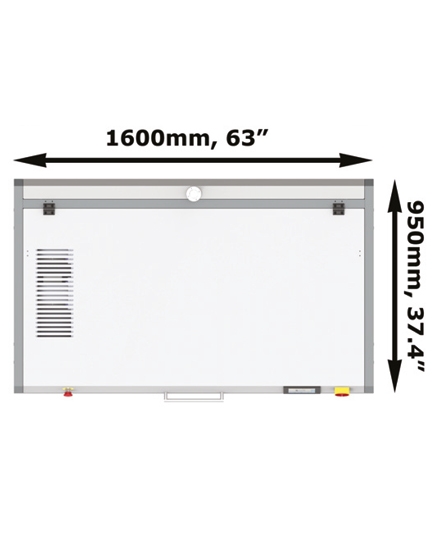

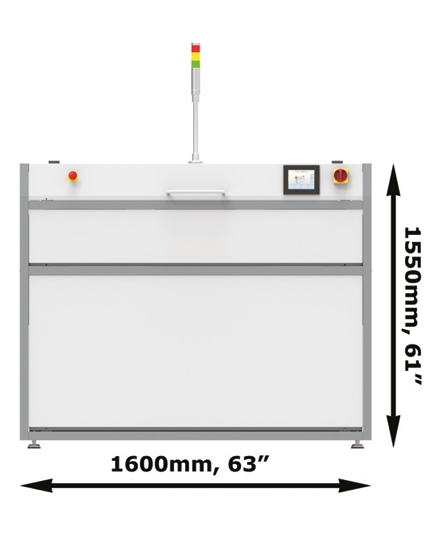

The UV 1600 Curing tunnel is a compact and effi cient in-line tunnel for curing conformal coating, glue and other fl uids. The UV 1600 uses Fusion ® microwave lamp technology. Each lamp covers a width of 150 mm and up to three lamps can be installed to cover a total width of 450 mm. A short curing time makes it possible to transport more PCB’s through the curing tunnel per hour and therefore provides for a high production capacity in only 1600 mm of length.

The energy control system uses conveyor width to determine number of lamps to use for the curing process. Lamps outside actual board width will not be lit. Time is logged for optimal use and lowest cost of ownership. An active cooling zone, placed immediately after the UV-area, provides a quick cool down to avoid sending heated boards to the subsequent machine in a production line.

Order codes:
UV 1600 Curing tunnel 150mm max. width, K-017-1048
UV 1600 Curing tunnel 300mm max. width, K-017-1049
UV 1600 Curing tunnel 450mm max. width, K-017-1050

Standard features

• Fully automatic in-line UV curing with Fusion® microwave lamps
• Modular system
• Active cooling zone
• Dual in and out shutters prevent UV-light leakage.
• Three segment adjustable speed pin chain conveyor
• Automatic width adjustment
• SMEMA interface
